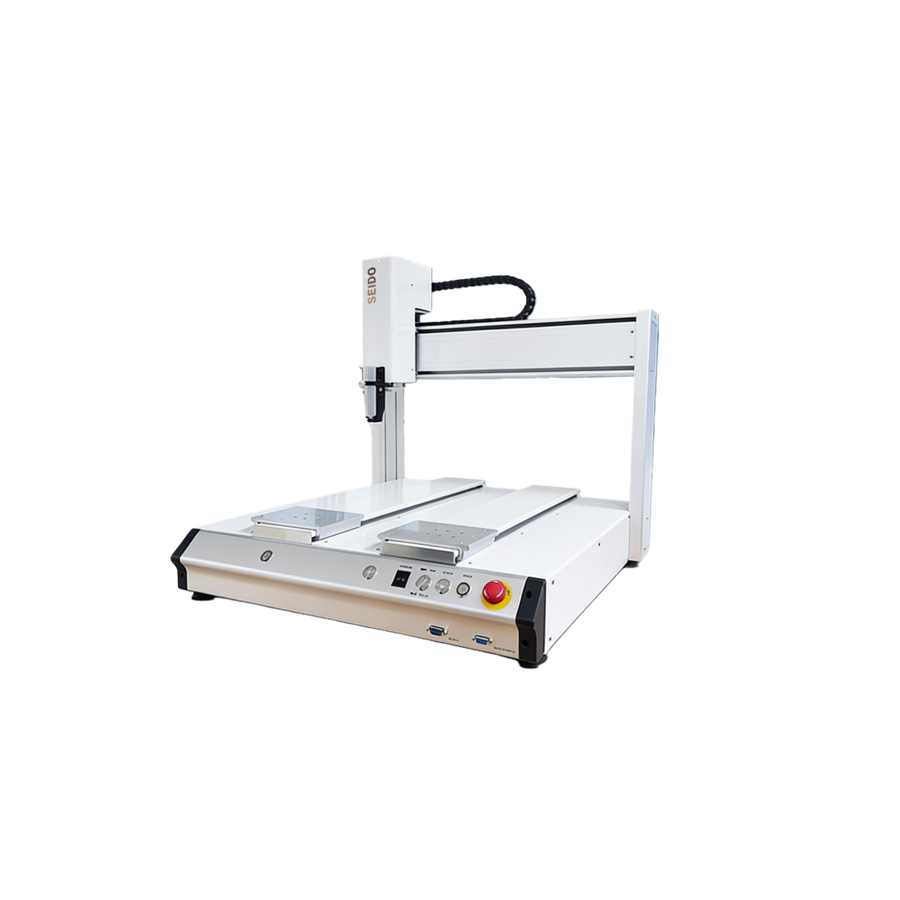

SÉIDO SDR-5050 2Y Dual Table Dispensing Robot
SÉIDO SDR-5050 2Y Dual Table Dispensing Robot
The SÉIDO SDR-5050 2Y Dual Table Dispensing Robot is engineered for high-speed and continuous dispensing operations with enhanced productivity. Featuring a dual-table design, precise XYZ movement, and stable ball screw mechanism, it ensures smooth and accurate dispensing performance. Ideal for adhesives, resins, RTV, epoxy, and automated industrial applications requiring efficiency, repeatability, and reduced cycle time.
Features
- Save cycle time.
- 2Y Axis can set different dispensing path.
- A hand-held Teach Pendant is provided for simple and intuitive programming functions.
- Z-axis ball screw, increase robot stability and repeatability.
- Dispensing area 500x500x500x100mm.
- Dot, lines, arc etc. and 3D dispensing path is available.
- 100 programs, 4000 points per program.
- Apply adhesives, cyanoacrylates, silicone, RTV, anaerobic resin, epoxy, UV cure formulations and many more fluids.
- Windows SSRE software is available for CAD file input (optional).
Specification
| Models | SDR-5050 2Y |
| Working Area X / Y1 / Y2 / Z (mm) | 500 / 500 / 500 / 100 |
| Load Worktable Y-Axis / Z-Axis | 5 kg / 3 kg |
| Maximum Speed XY / Z (mm/sec) | 0.1 – 600 / 300 |
| Resolution | 0.001 mm / Axis |
| Repeatability | +/- 0.01 mm / Axis |
| Data Memory Capacity | 100 programs – 4000 points/program |
| Display | TFT |
| Driver System / Stepping Motor | Micro stepping motor |
| Motion Control | PTP & CP |
| Linear / Circular Interpolation | 3 axis / 2Y |
| Teaching Method | Teach pendant |
| I/O Signals | 8 Inputs / 8 Outputs |
| Power Supply | 100 – 230 VAC, 320 W |
| Working Temperature | 0 – 40°C |
| Relative Humidity (no condensation) | 20–90% No condensation |

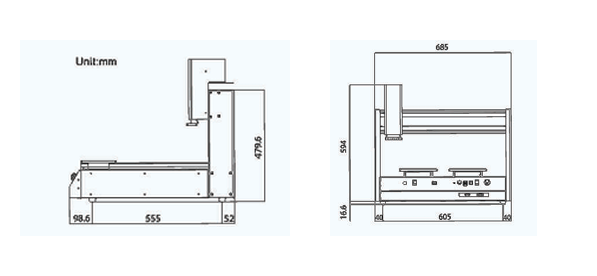

| Dimensions (WxDxH mm) | 685 x 715 x 670 |
| Robot Weight | 70 kg |
