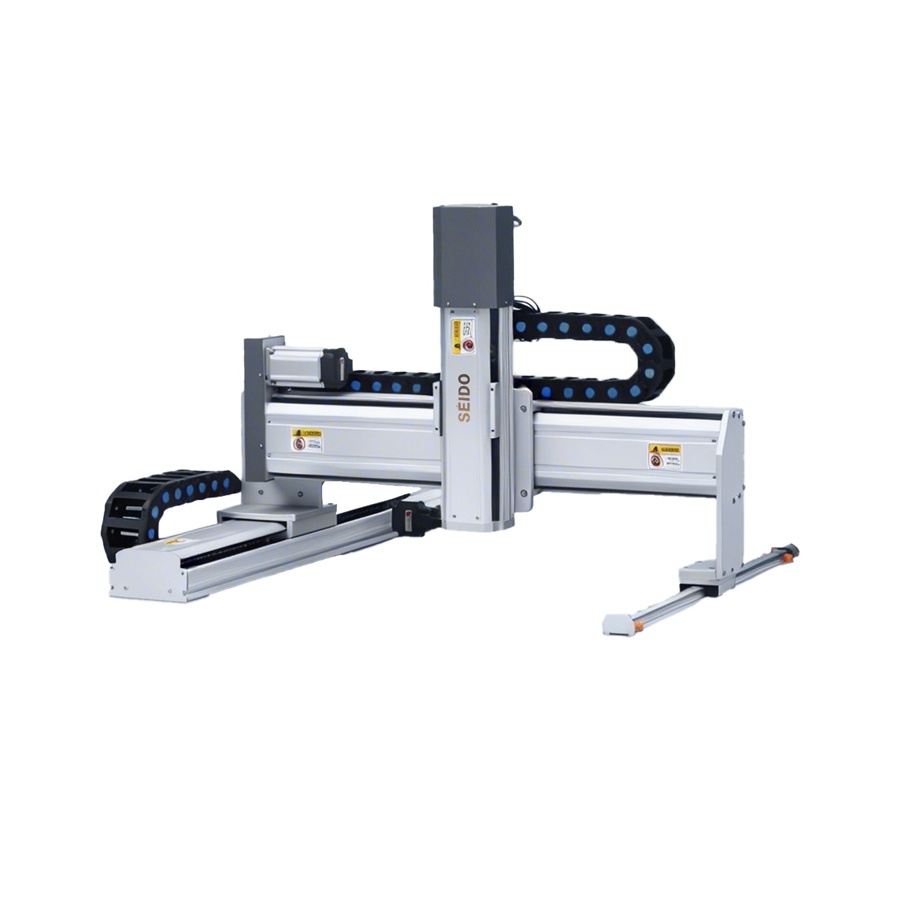

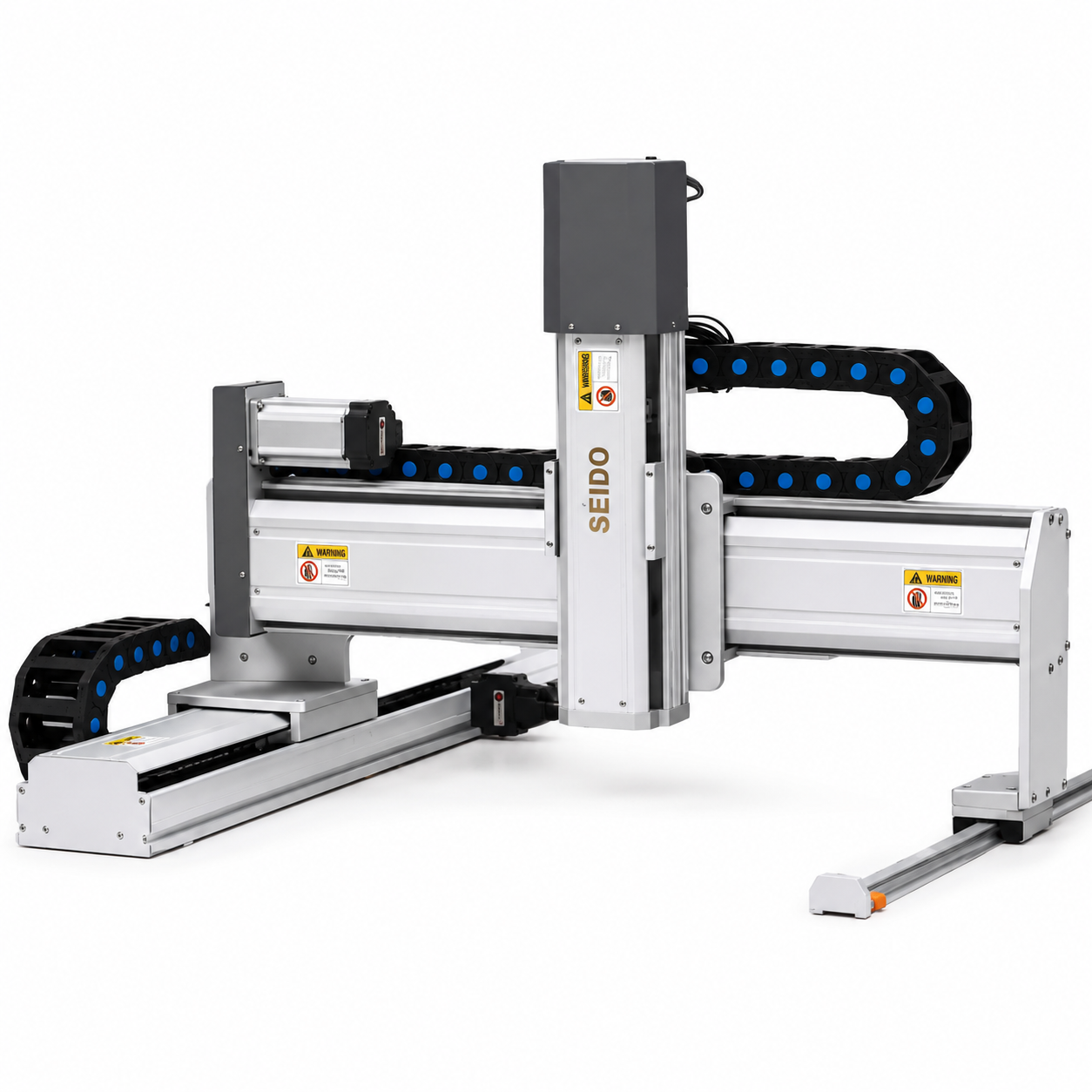

SÉIDO SGR Series Gantry Dispensing Robots
SÉIDO SGR Series Gantry Dispensing Robots
The SÉIDO SGR Series Gantry Dispensing Robots are designed for high-precision industrial dispensing with a strong and stable gantry structure. Equipped with servo motor control, smooth multi-axis movement, and advanced programming functions, these robots deliver accurate and efficient performance for automated manufacturing applications. Ideal for dispensing adhesives, resins, RTV, epoxy, and other fluids with excellent repeatability and reliability.
Features
-
Many projects also require all moving axes
to be above the workstation, the SGR series provides that capability. - AC servo motors with ball screw design.
- Available in three and four axis models.
- High-rigidity frame structure.
- Customized Design Available.
- Digital Servo controlled and ball screw driver.
- Repeatability ±0.01mm for accurate dispensing.
- Dot, Lines, Arc etc. and 3D dispensing path is available.
- A hand-held Teach Pendant is provided for simple and intuitive programming functions.
-
Apply adhesives, cyanoacrylates, silicone, RTV, anaerobic resin,
epoxy, UV cure formulations and many more fluids. - Windows SSRE software is available for CAD file input (optional).
Specification
| Model | SGR-330 | SGR-440 | SGR-550 |
| Working Area X / Y / Z (mm) | 300 / 300 / 100 | 400 / 400 / 100 | 500 / 500 / 100 |
| Load Worktable Y-Axis / Z-Axis | 30 kg / 10 kg | ||
| Maximum Speed XY / Z (mm/sec) | 0.1 – 600 / 300 | ||
| Resolution | 0.001 mm / Axis | ||
| Repeatability | +/- 0.01 mm / Axis | ||
| Data Memory Capacity | 4000 points/program | ||
| Data Storage Type | PC HD Storage | ||
| Display | TFT LCD | ||
| Driver System | Servo motor | ||
| Control Method | PTP & CP | ||
| Linear / Circular Interpolation | 3 axis | ||
| Teaching Method | Teach pendant | ||
| I/O Signals | 8 Inputs / 8 Outputs | ||
| External Control Interface | RS232 | ||
| Power Supply | 220 VAC | ||
| Working Temperature | 0 – 40°C | ||
| Relative Humidity (no condensation) | 20–90% No condensation | ||
| Dimensions (WxDxH mm) | 690 x 750 x 550 | 790 x 850 x 550 | 890 x 950 x 550 |
| Robot Weight | 60 kg | 70 kg | 80 kg |
