MS220-S-2513
MS220-S-2513

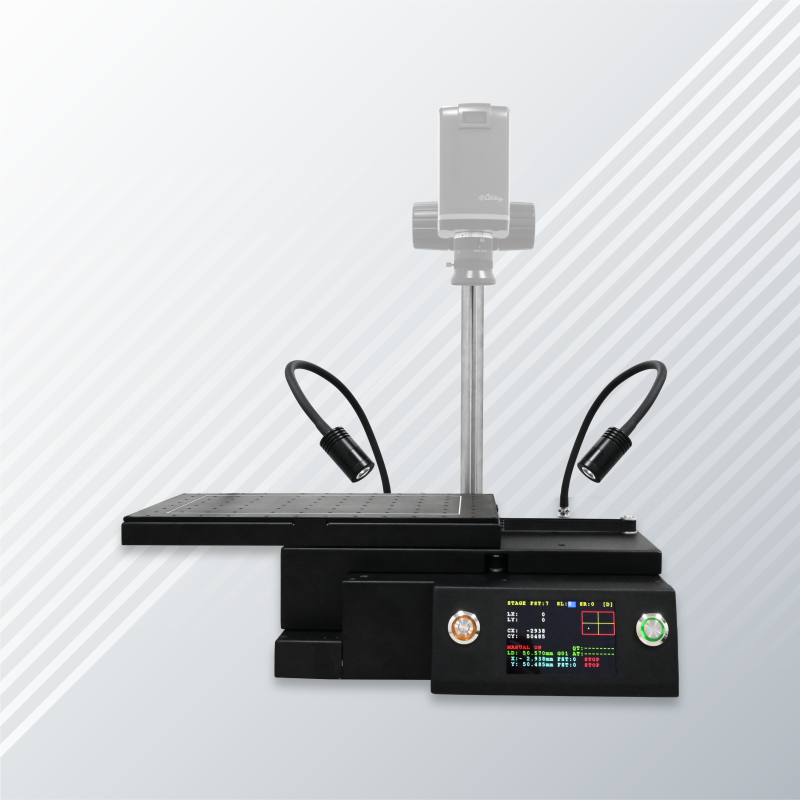

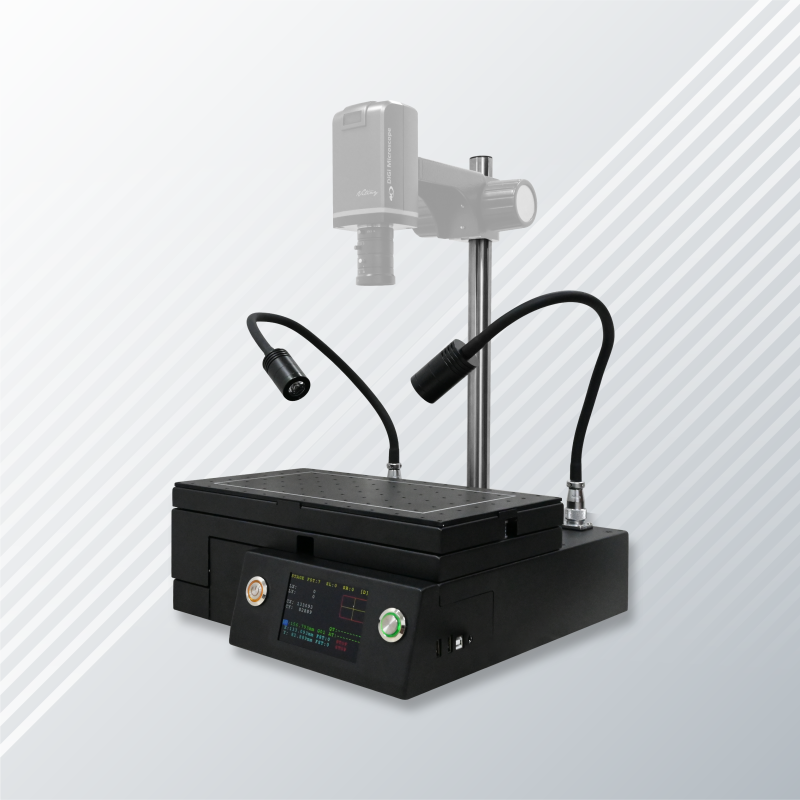

Visual inspection plays an increasingly important role in the industry, and automation is the goal of everyone's efforts to reduce costs, improve efficiency, and avoid errors. MS220 is the best tool to help traditional detection methods take the first step at a limited cost. MS220-S-2513 is a scanning inspection method. It can accurately position, record XY coordinates, and perform repeated coordinate movements. Combined with the autofocus system of different models of Vitiny, the speed of the XY platform can be flexibly adjusted to easily detect a large number of samples repeatedly. MS220 also solves the problem of large-sized samples that are beyond the viewing area of the lens and cannot be measured. By gently sliding the mouse, you can use the coordinate positions of 2 points to calculate the size of the large sample. Distance, record, and light control are easy to operate through the movement of the mouse. MS220 Advantages
- Locate the X-Y coordinate point , easily repeated comparison and continuous inspection.
- Scanning inspection mode, not to miss any tiny point
- Auto focus + capture for fixed point sampling and further AI analysis
Software
-
- Setting and record coordinate
- Repeatable automatic operation of recorded coordinate points
- 10 sets of coordinates can be set, each set can contain up to 20 points.
- Automatic operation can be set to idle seconds
- Display and record moving distance to the original point
- Measure the distance between two points
Specifications
| Travel Range of X, Y | 250 x 130 mm |
| X Position Accuracy | ± 5 um |
| Y Position Accuracy | ± 5 um |
| X, Y Axis Resolution | 1 um |
| Platform Size | 320 x 190 mm |
| Loading | 1 kgs |
| Stand Pole Holder | Φ 25 mm |
| Side Light | Adjustable Brightness |
| Adaptor | 12V/ 5A, Length : 260 mm |

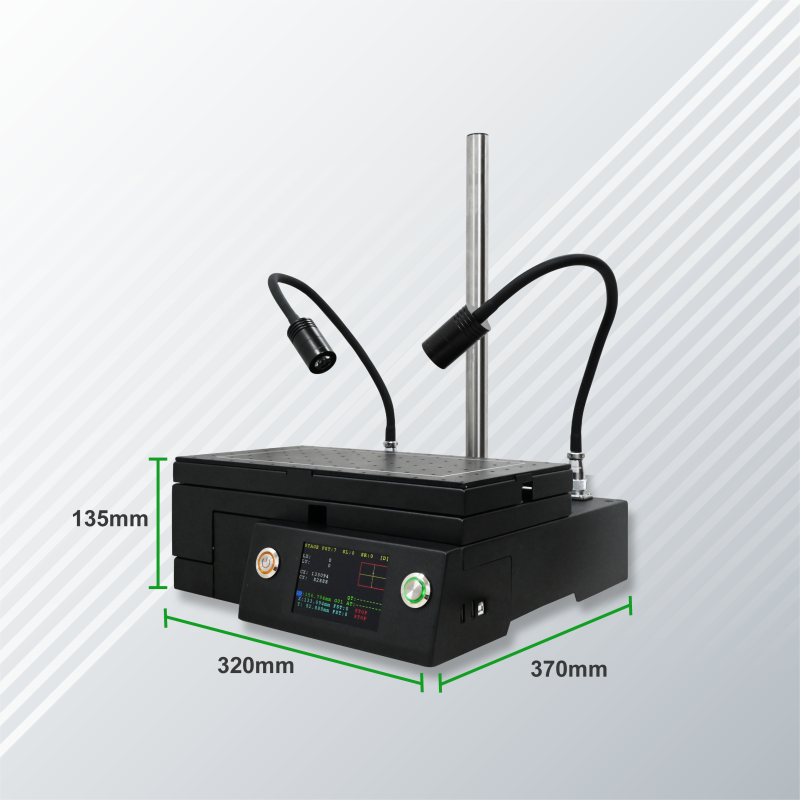

| Machine Size | 320(W) x 370(D) x 135(H) mm |
| Machine Weight | 11 kgs |
Accessories
| Item | Q’ty | Item | Q’ty |
|---|---|---|---|
| Power Adaptor | 1 | Pole (450xΦ25mm) | Optional |

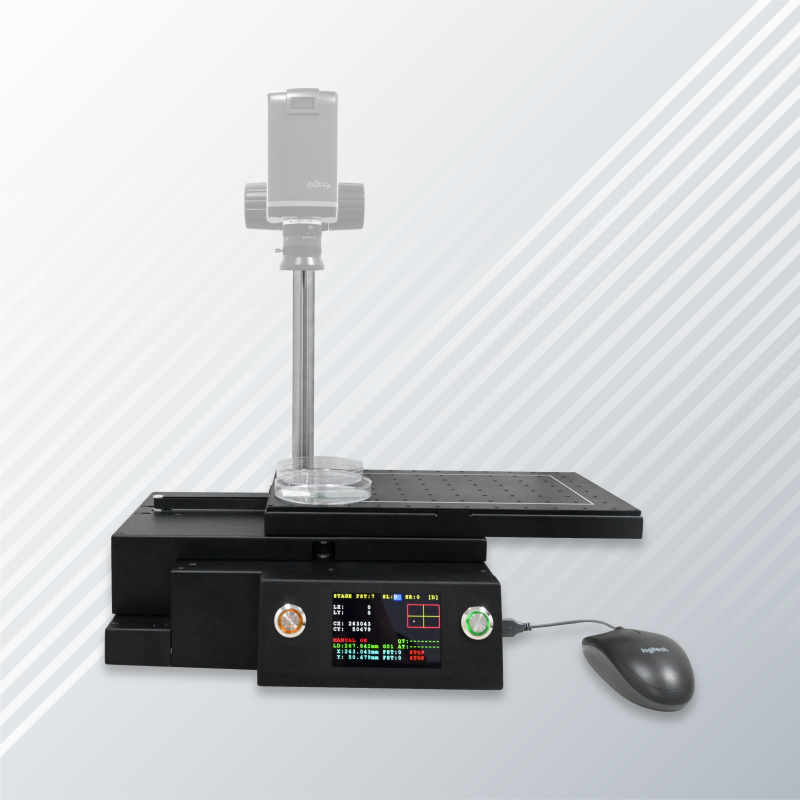

| Mouse | 1 | Pegboard (320x190x3mm)+ Dowel pin |
Optional |
Discover the Impact of the MS220-S-2513 in Diverse Industries?
Electronics Manufacturing
Essential for inspecting PCBs, solder joints, and components for defects or quality issues.
Automotive Industry
Used to examine automotive parts, ensuring precision in engines and electronic systems.
Precision Engineering
Facilitates detailed examination of machined parts, crucial for maintaining tolerances and specifications.
Medical Laboratories
Aids in the analysis of biological specimens for research and diagnosis.
Electronics Manufacturing
Essential for inspecting PCBs, solder joints, and components for defects or quality issues.
Automotive Industry
sed to examine automotive parts, ensuring precision in engines and electronic systems.
Precision Engineering
Facilitates detailed examination of machined parts, crucial for maintaining tolerances and specifications.
Medical Laboratories
Aids in the analysis of biological specimens for research and diagnosis.
