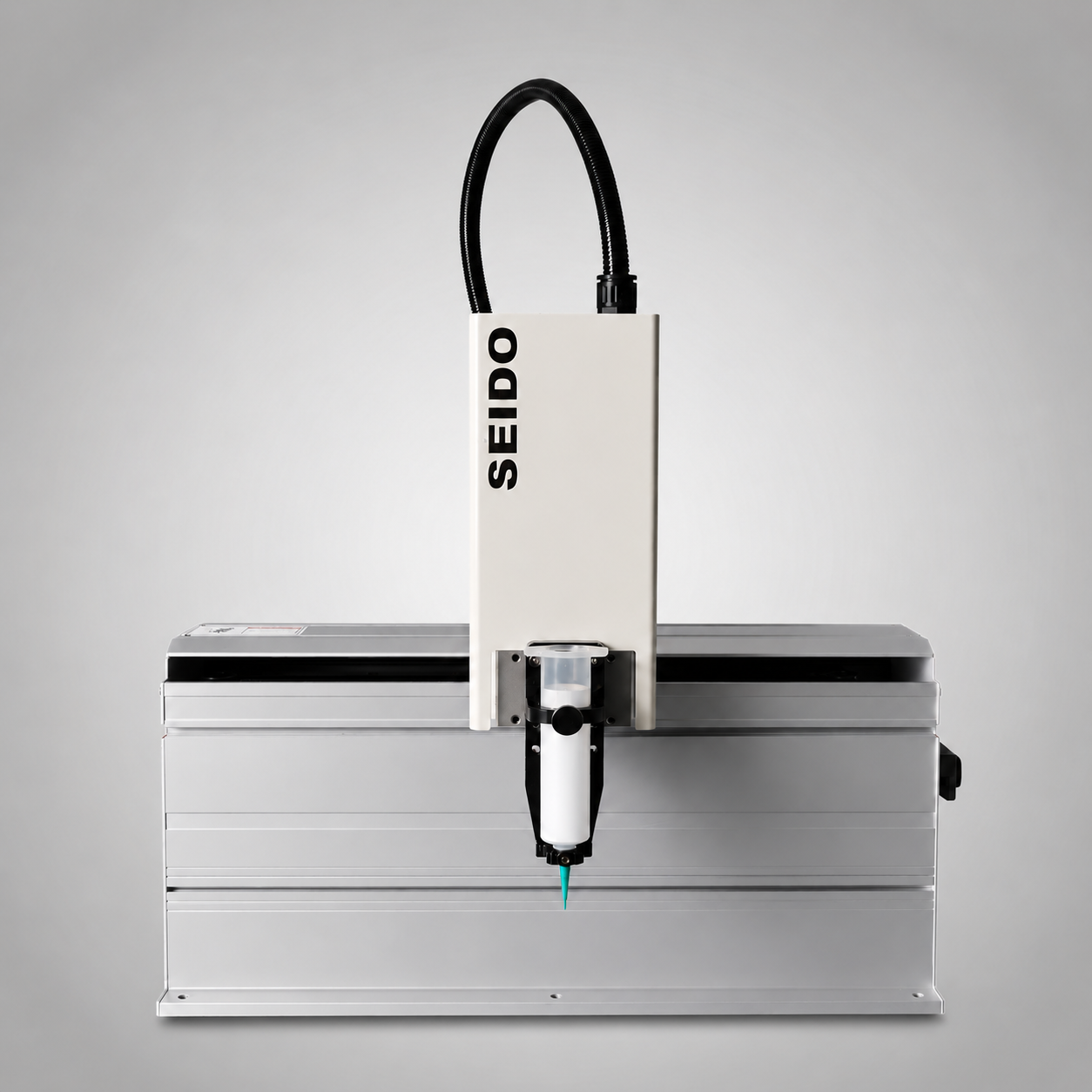

SÉIDO SDR Mini Gantry Dispensing Robot Series
SÉIDO SDR Mini Gantry Dispensing Robot Series
The SÉIDO SDR Mini Gantry Dispensing Robot Series is built for compact, precise, and efficient dispensing applications. Featuring smooth XYZ movement, easy teach-pendant operation, USB data transfer, and stable dispensing performance, these robots are ideal for automated production environments. Available in multiple working sizes, the series offers reliable accuracy, space-saving design, and high operational efficiency.
Features
- Integrated with the mechanism to increase the scope of operation.
- Integrated with mobile production lines to increase dispensing efficiency.
- Combine with the electronic control and mechanism for reduced footprint.
- Combine controller with robot, save place.
- USB port allows for data transfer between PC.
- Continuous path motion for accurate XYZ movement.
- Optional SSRE software (PC programming).
- Dispensing area 300x200x100mm.
Specification
| Model | SDR-123 | SDR-124 | SDR-125 |
| Working Area X / Y / Z (mm) | 300 / 200 / 100 | 400 / 200 / 100 | 500 / 200 / 100 |
| Tool Load | 2 kg | 2 kg | 2 kg |
| Maximum Speed XY / Z (mm/sec) | 0.1 – 500 / 300 | ||
| Repeatability | +/- 0.02 mm / Axis | ||
| Data Memory Capacity | 100 programs – 4000 points/program | ||
| Drive System / Stepping Motor | Micro stepping motor | ||
| Motion Control | PTP & CP | ||
| Teaching Method | Teach pendant | ||
| Power Supply | 100 – 230 VAC, 320 W | ||
| Working Temperature | 0 – 40°C | ||
| Relative Humidity (no condensation) | 20–90% No condensation | ||
| Dimensions (WxDxH mm) | 464 x 387 x 432 | 564 x 387 x 432 | 664 x 387 x 432 |
| Robot Weight | 21 kg | 26 kg | 31 kg |
