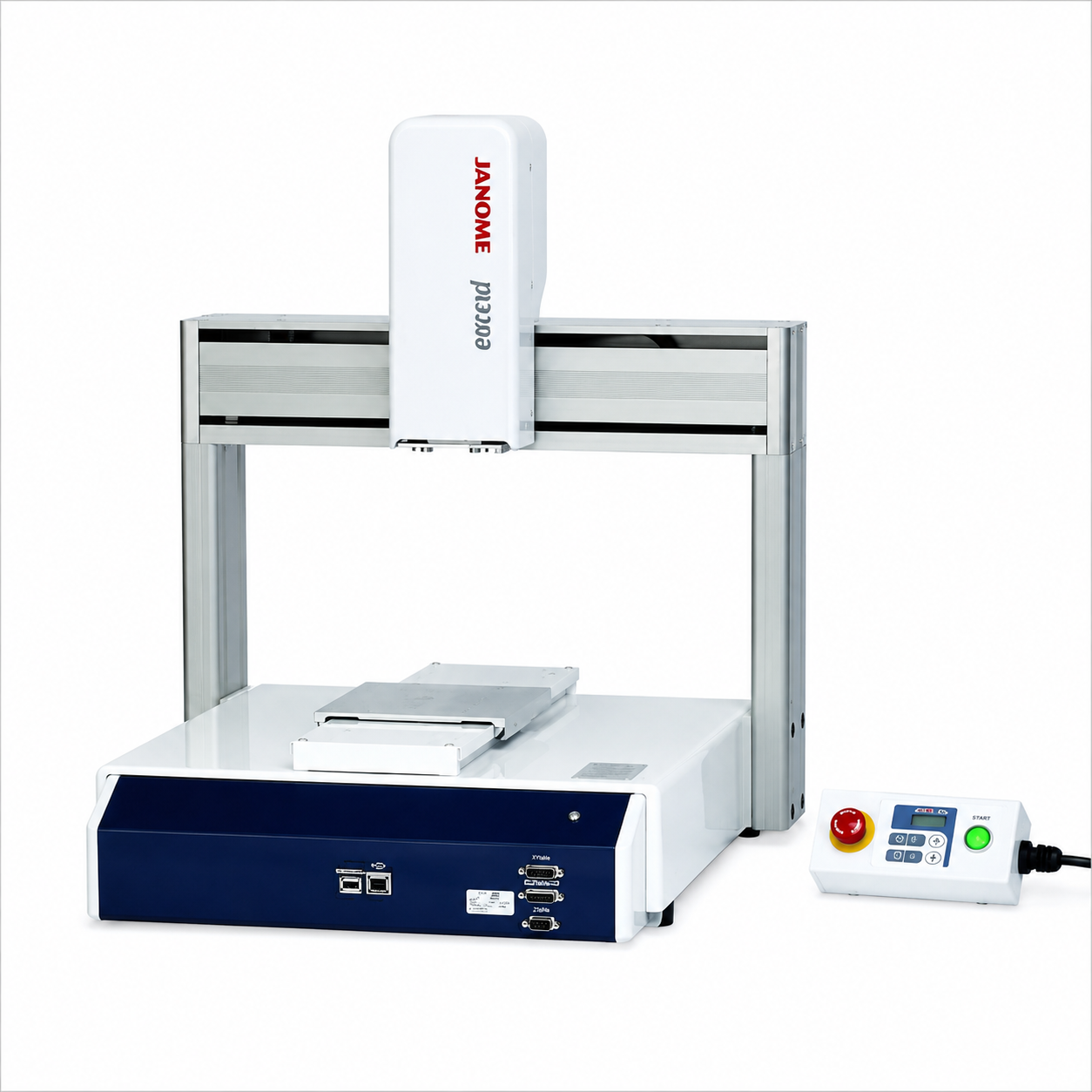

The JR3000 Series is a multifunctional robot designed with both cell production sites and automated inline installation in mind. With a rich catalog of functions including Fieldbus compatibility, a built-in LAN port as standard equipment, software that makes camera installation easy and the ability to control up to two external motors, the JR3000 is ready to fill many different manufacturing roles.
The JR3000 is a versatile robot usable for a variety of manufacturing processes, including dispensing, screw-tightening, soldering, PC board depaneling, pick-and-place, testing and more. Use the I/O-MT function to control up to 2 external motors and/or a camera system to take advantage of the position correction function and further broaden the robot’s usefulness. Here are some examples of applications where the JR3000 can work for you.
Features
- Increased Structural Rigidity
We’ve made the robot even more rigid, which in turn makes it faster (maximum speed up to 900mm/s), more accurate, and able to operate non-stop for extended periods. We’ve stabilized the tracking function at high speeds. When a camera is attached to the Z-mechanism, the oscillation when the robot comes to a stop is greatly reduced, thereby cutting the wait time by approximately 50% (compared to previous Janome models).
- Hidden Robot Cable
New for desktop robots, the Z-axis cable is built into the Y-axis housing; a compact design ideal for workspaces with height limitations.
- Easy
Using our dedicated dispening application software, all you need to do is select the positions where you want the needle tip to go and dispense.
- Convenient
The JR3000 is the ideal dispensing robot, fully equipped with helpful functions such as a fill-in dispensing function and a fragment prevention function as well as needle adjustment functions for 3 and 4 Axes types. Add an optional “Purging Switch”, which runs the dispenser for as long as you press it
Specifications – 3 Axis(Synchronous Control)
Item Model | JR3203 | JR3303 | JR3403 | JR3503 | JR3603 | |
Operating Range | X & Y Axis | 200X200mm | 200X200mm | 200X200mm | 200X200mm | 200X200mm |
Z Axis | 50mm | 50mm | 50mm | 50mm | 50mm | |
Maximum Portable Lead | X Axis (workpiece) |
7kg | 7kg | 7kg | 7kg | 7kg |
Y Axis(Tool) | 3.5kg | 3.5kg | 3.5kg | 3.5kg | 3.5kg | |
Maximum Speed (PTP Drive)*2[ ]=Settable Speed Range |
X & Y Axis | 700mm/sec | 900mm/sec | 900mm/sec | 900mm/sec | 900mm/sec |
[7~700mm/sec] | [9~900mm/sec] | [9~900mm/sec] | [9~900mm/sec] | [9~900mm/sec] | ||
Z Axis | 250mm/sec | 400mm/sec | 400mm/sec | 400mm/sec | 400mm/sec | |
[2.5~250mm/sec] | [4~400mm/sec] | [4~400mm/sec] | [4~400mm/sec] | [4~400mm/sec] | ||
Maximum Speed (CP Drive)*2[ ]=Settable Speed Range |
X,Y,Z Axis (Combined) |
600mm/sec | 850mm/sec | 850mm/sec | 850mm/sec | 850mm/sec |
[0.1~600mm/sec] | [0.1~850mm/sec] | [0.1~850mm/sec] | [0.1~850mm/sec] | [0.1~850mm/sec] | ||
Repeatability*3 | X & Y Axis | ±0.006mm | ±0.007mm | ±0.007mm | ±0.008mm | x: ±0.008mm |
Y: ±0.01mm | ||||||
Z Axis | ±0.006mm | ±0.007mm | ±0.007mm | ±0.008mm | ±0.008mm | |
External Dimensions WXDXH(mm) (Excluding Protrusions)[ ]=Double Column Type |
323X387X554mm | 560X535X659 | 584X631X807[615X631X807] | 687X731X807 | 790X731X807 | |
Robot Weight[ ]=Double Column Type | 20kg | 35kg | 42kg[45kg] | 44kg | 45kg |
