– 3-port rework station
– Accepts 9 types of application
Features

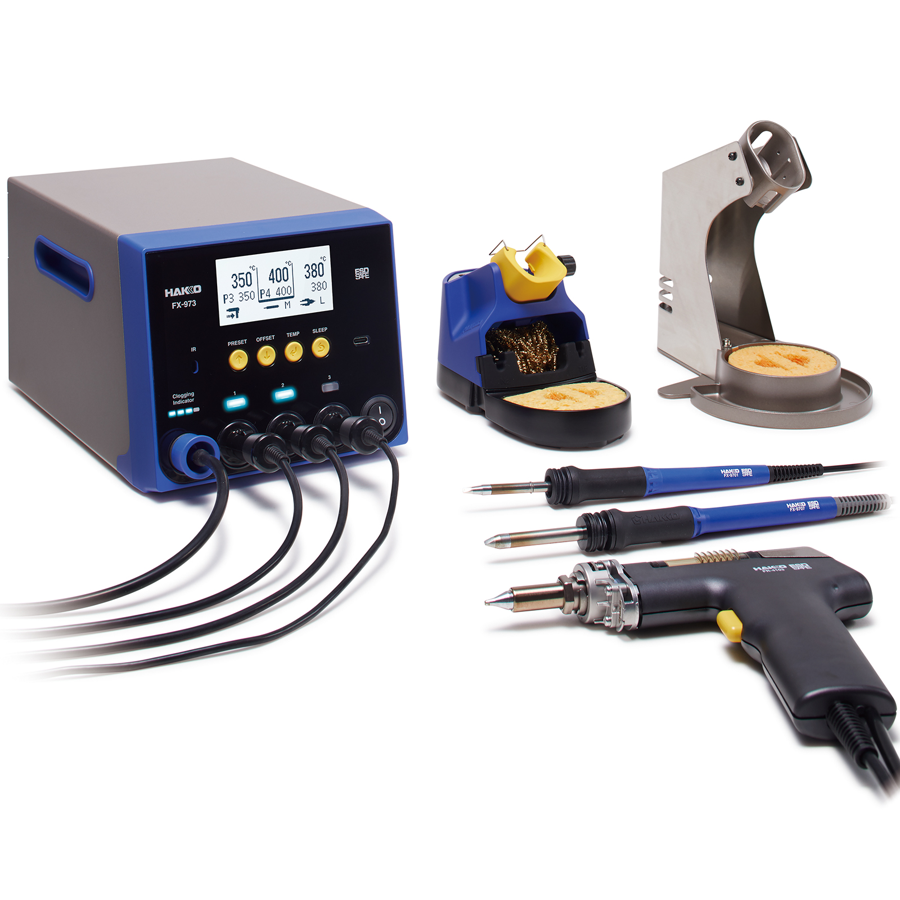

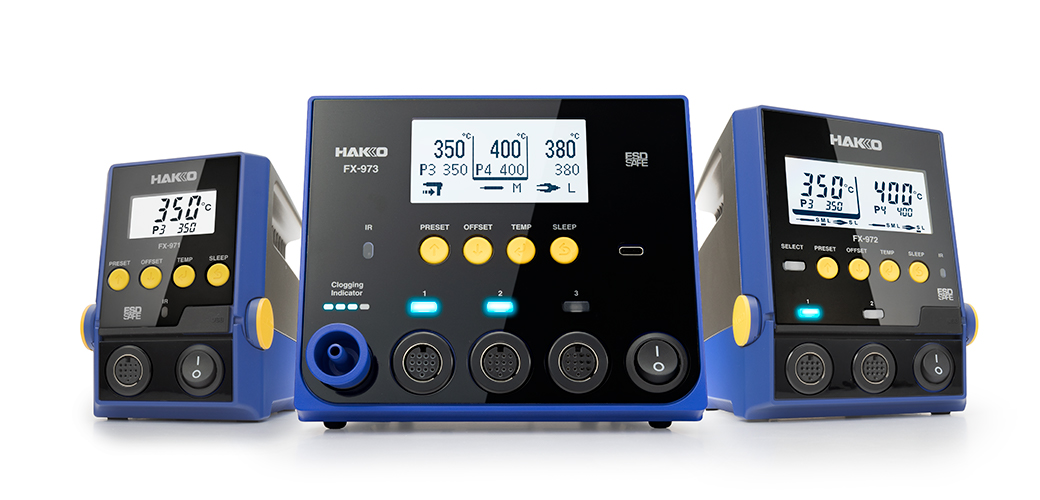

FX-971 series 3-port rework station
All nine types of handpieces can be used on any port, and a desoldering unit is included as standard. Flexible configuration options enable optimal combinations to meet the demands of various applications and workpieces.

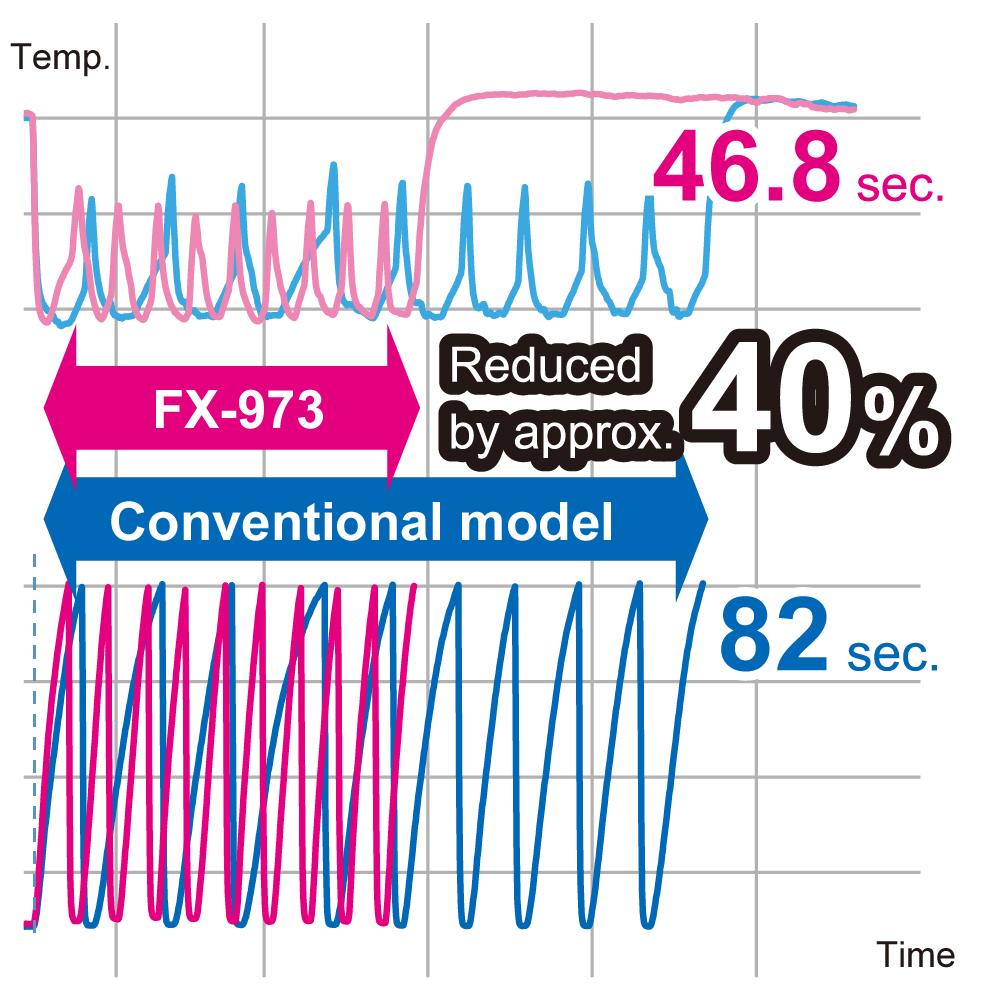

Cycle time reduced by approx. 40%
It enables soldering in a shorter time and improves work efficiency.
High Visible Display
It shows information such as set temperature, tip’s sensor temperature, and preset setting, clearly and widely.
The viewing angle is wide, and the high-brightness display provides high visibility.
Priority Channel

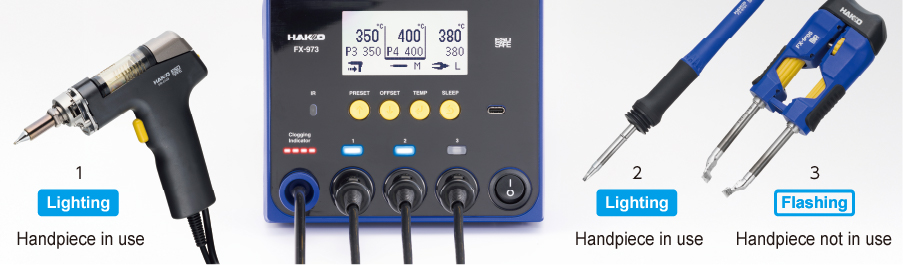

A built-in sensor detects the handpiece in use and automatically switches channels. The unused handpiece stands by at the set temperature. And the operation delay does not occur after channel switching achieving maximum power with minimum size of station.
Infrared Communication

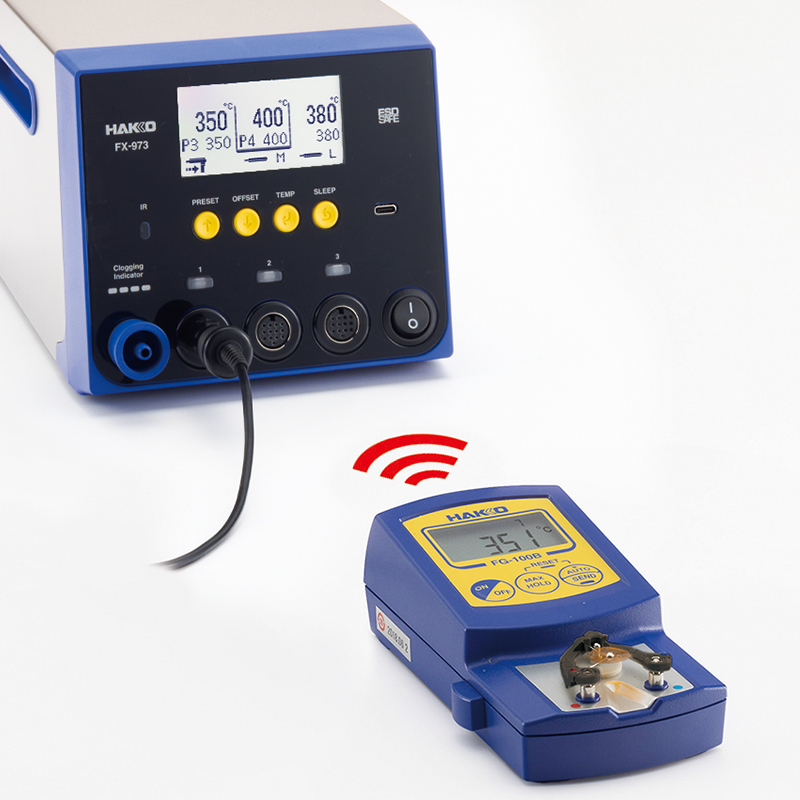

Automatic calibration and correction can be completed by transmitting the measurement data from the thermometer (FG-100B/FG-101B) to the main unit, via infrared.
Software

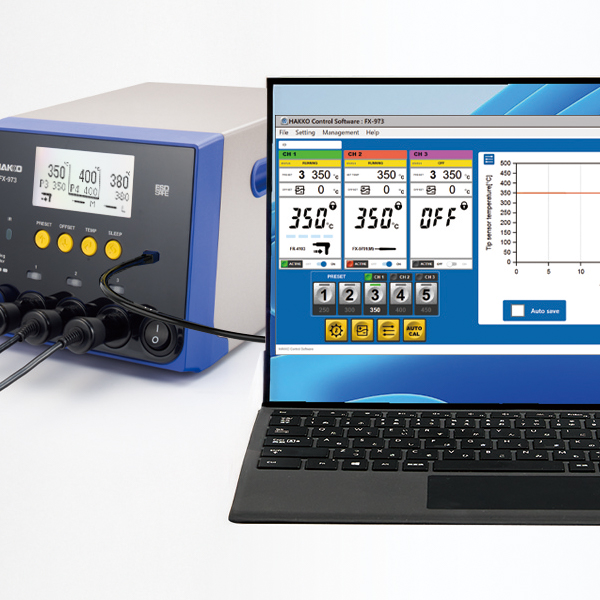

By connecting the station to a PC, the set temperature of the hot air, calibration/correction, and the hot air temperature history during operation can be recorded on the PC. Enables management with zero human error.

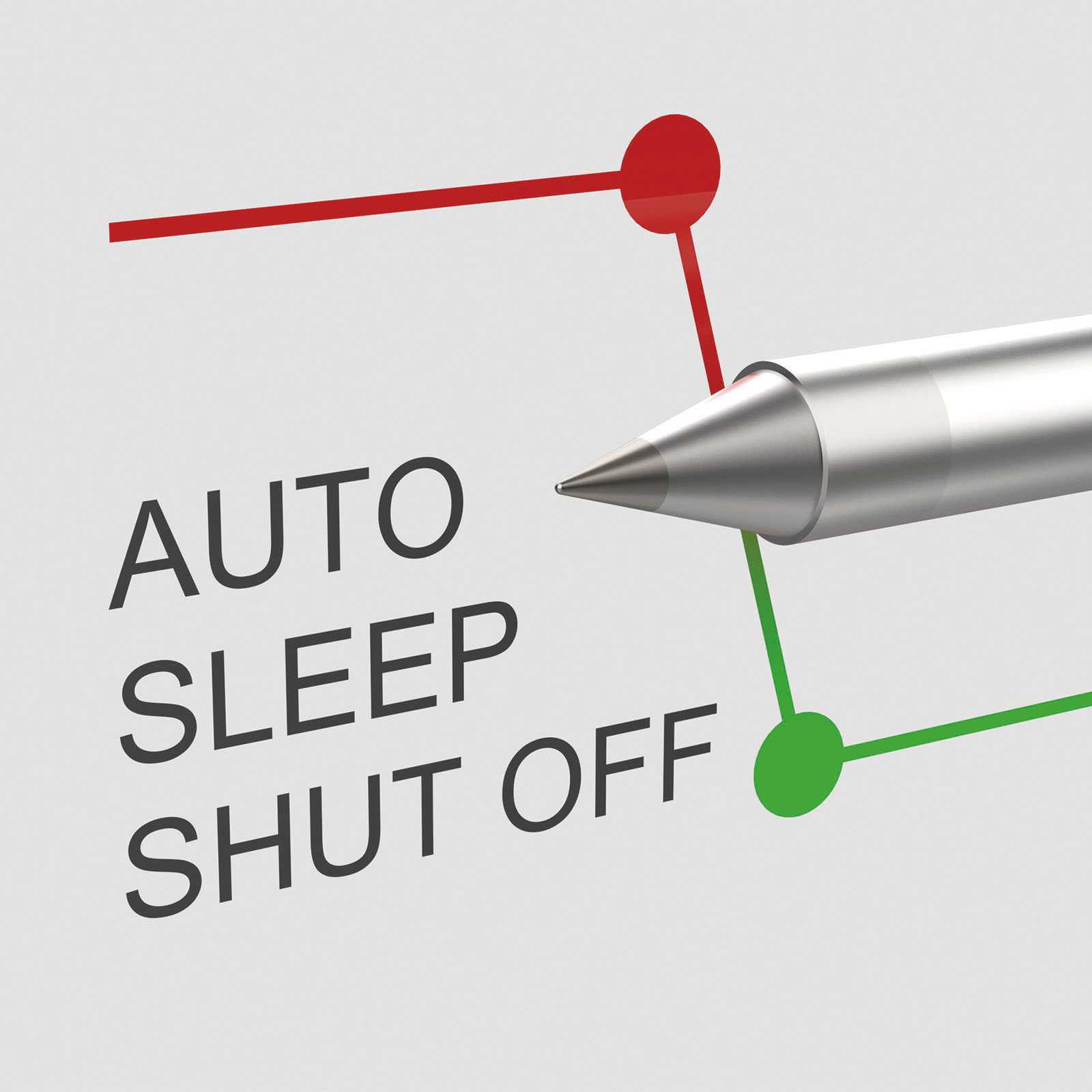

Auto Sleep function / Auto Shutoff function
The built-in sensor of the tip inside makes it possible to use auto-sleep and auto-shutoff functions without connecting the station and the iron holder, and it helps to lay out the station and iron holder freely in the working space.

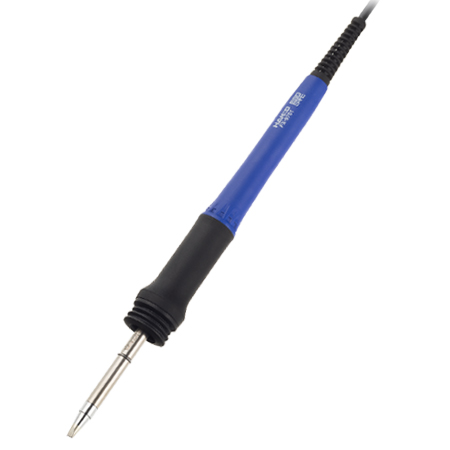

Soldering iron FX-9701

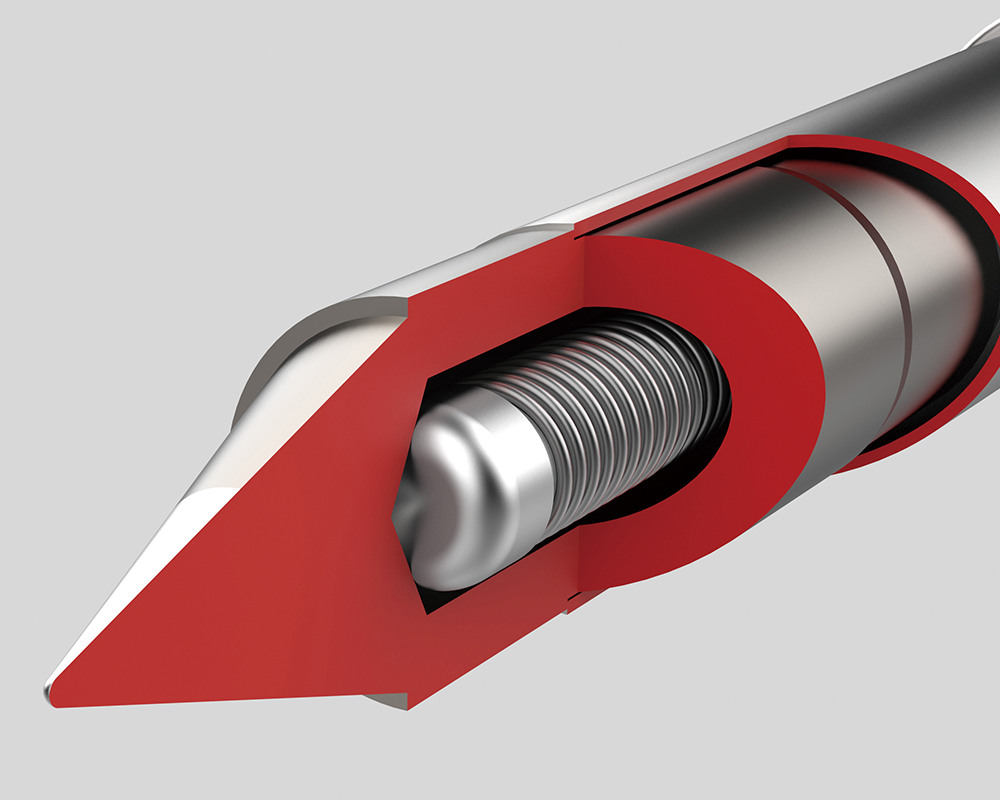

Equipped with a New Composite Tip (*Patent Registered)
Designed to improve sensor sensitivity and efficiently transfer heat from the heater to the tip, ensuring stable tip temperature and enabling more precise and reliable soldering.

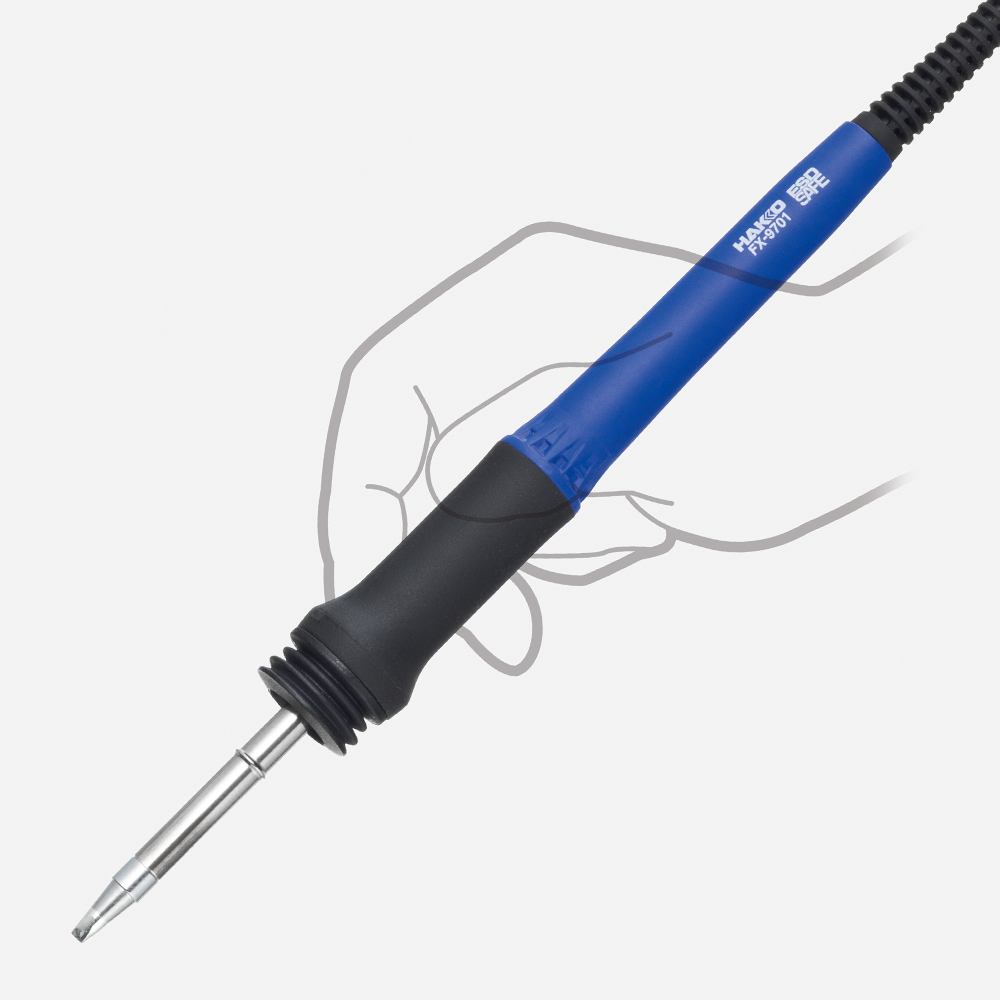

Well-balanced grip for excellent workability
The easy-to-use grip backs up the lineup of tips that can be used for all kinds of operations.
Slim cable design allows for easy handling.

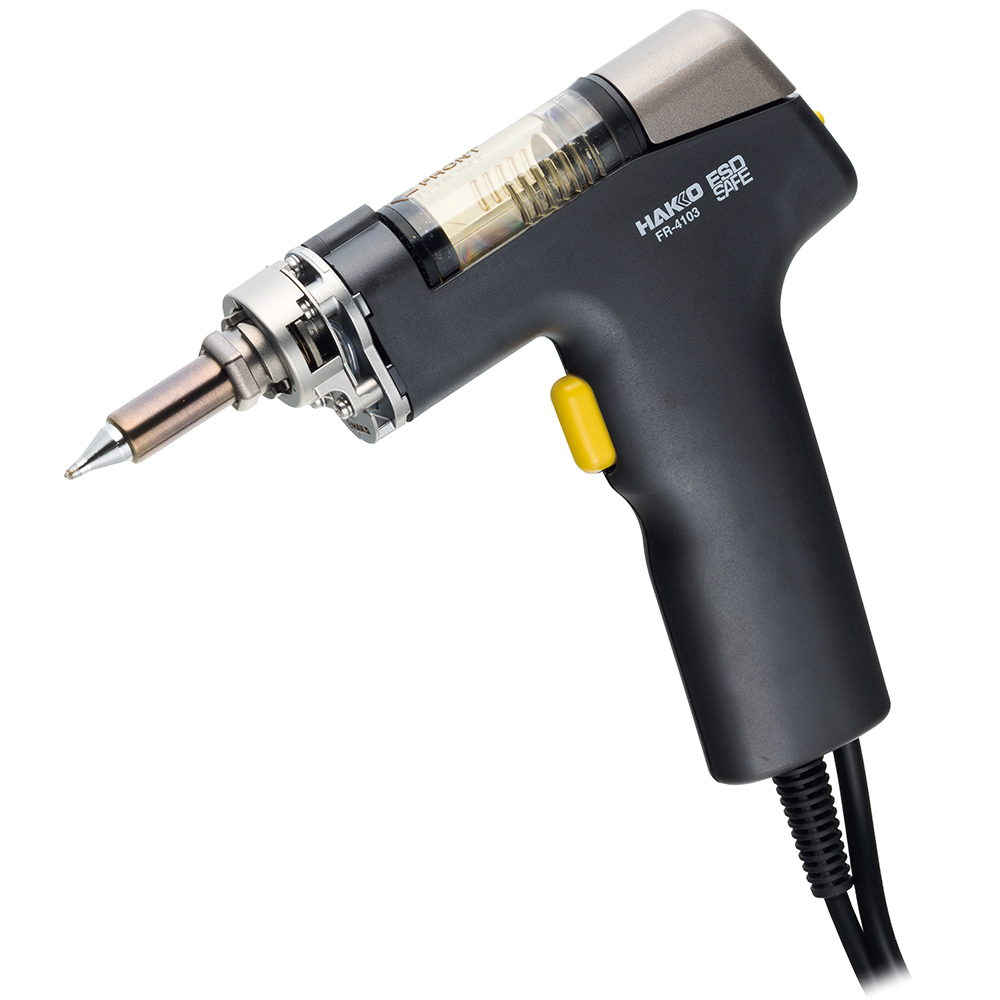

Desoldering tool FR-4103
140 W High-Power Heater
– Optimized for Solder Removal on Multilayer PWBs

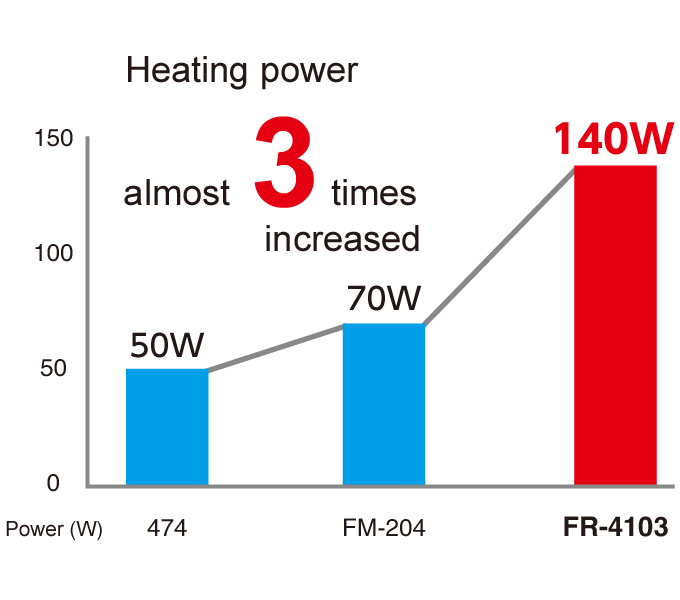

Heating power almost 3 times increased! ※1

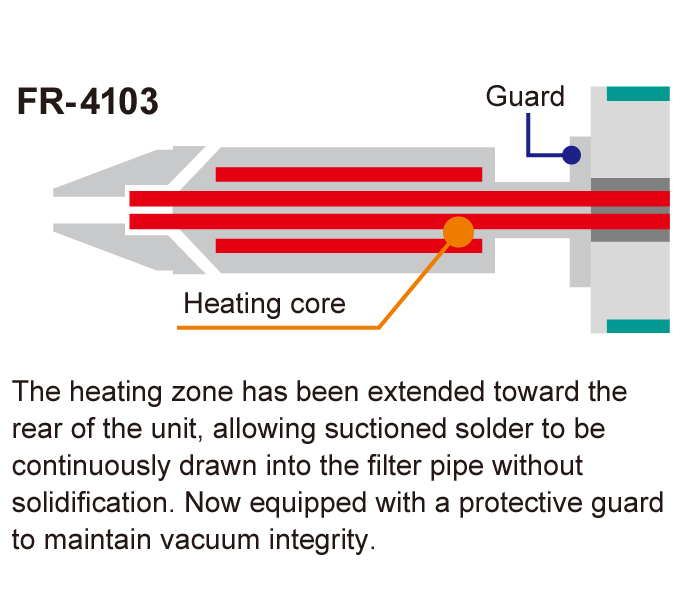

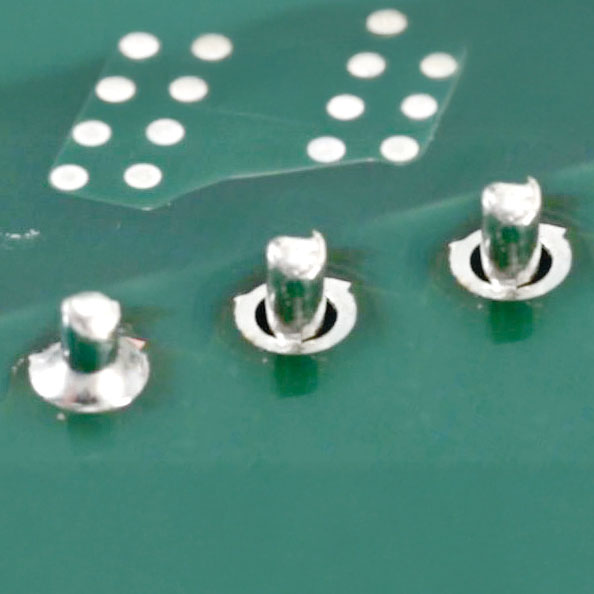

Solder extraction on multilayer PWBs, once challenging, is now stress-free. Improvements in the heater and the use of ACF ※2 ensure that the extracted solder is reliably conveyed to the filter pipe, reducing solder clogging.
*1 Compared to our previous models
*2 ACF (Anti Clogging Function) is a feature that automatically operates the pump for a certain number of seconds after releasing the trigger.
Secure Desoldering – High suction power with precise valve control
Suction activates just 0.2 seconds after peak vacuum is reached, enabling rapid and powerful extraction while minimizing residual solder.

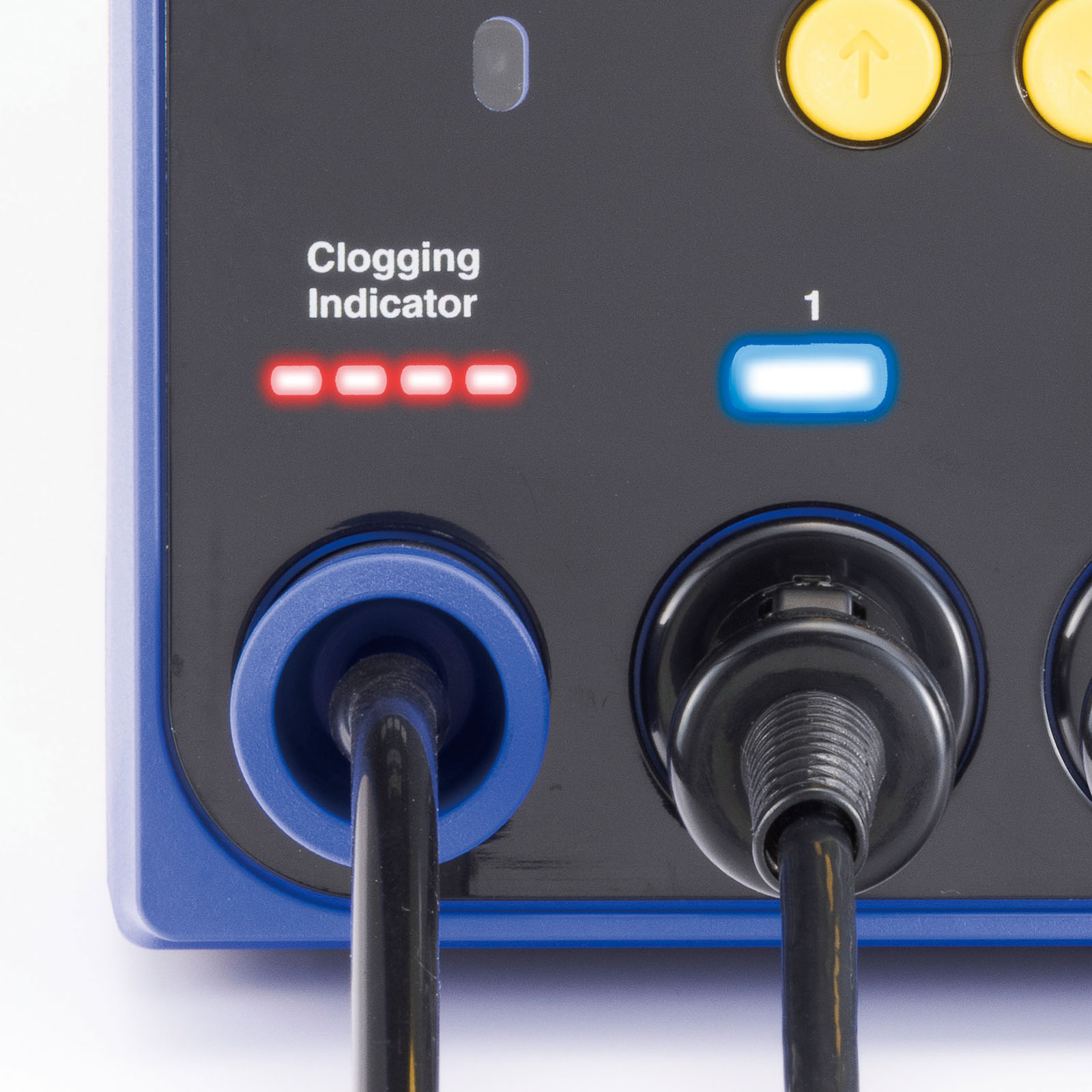

Clogging Indicator
LED indicator shows suction status enabling to know the timing of cleaning, replacement of filter and maintenance.
Connectable applications to the FX-973
9 different applications can be used without specifying the connecting port.
Soldering iron
FX-9701
N2 Soldering iron

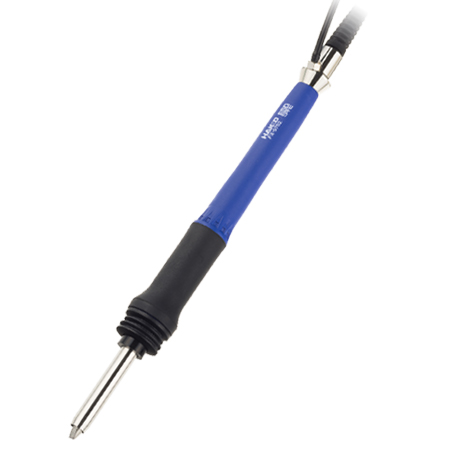

FX-9702
Micro soldering iron

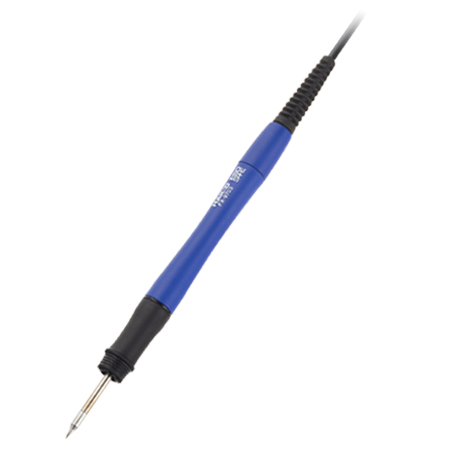

FX-9703

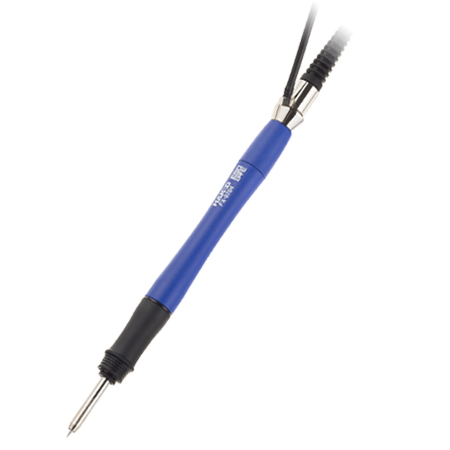

N2 Soldering iron
FX-9704

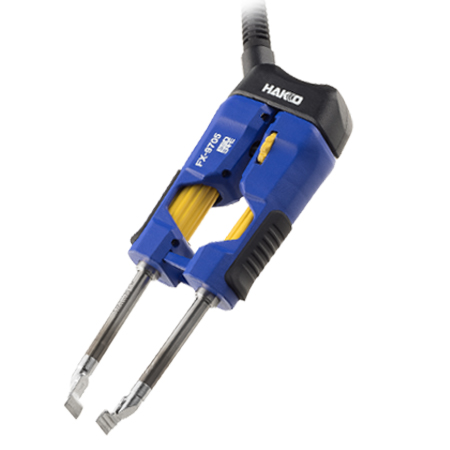

Hot tweezers
FX-9705

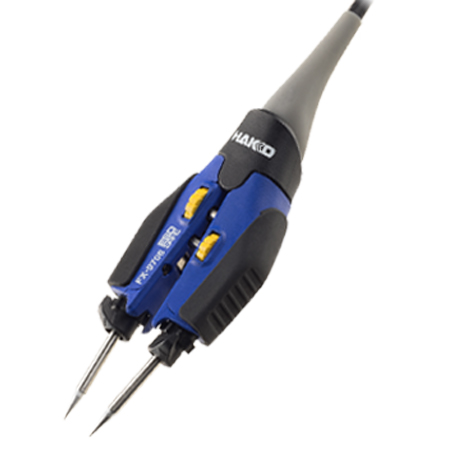

Micro Hot tweezers
FX-9706

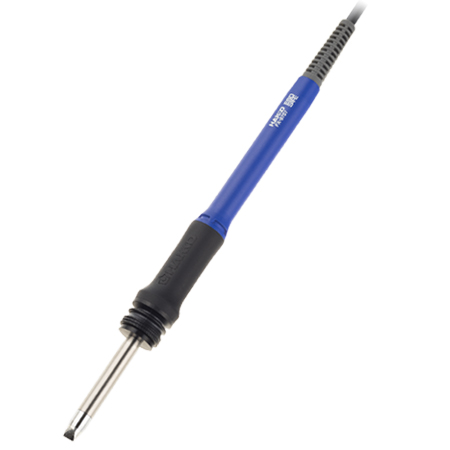

Heavy duty soldering iron
FX-9707

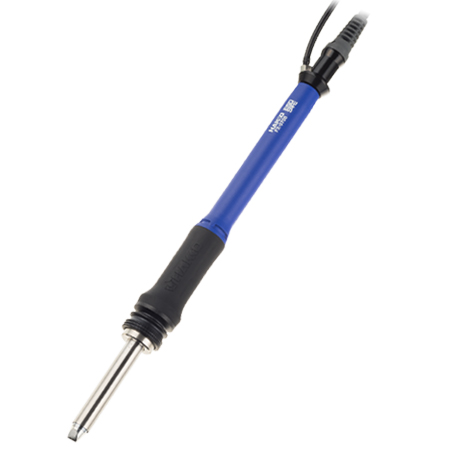

Heavy duty N2 Soldering iron
FX-9708
Desoldering tool
FR-4103
* Handpieces may not be used simultaneously depending on the conditions.
Specifications
| Model No. | FX-973 |
|---|---|
| Power consumption | 400 W |
| Temperature range | 50 to 450℃ With heavy-duty soldering iron connected: 50 to 500℃ With desoldering tool connected: 330 to 450℃ |
| Temperature stability | ±3℃ (At idle temperature) With heavy-duty soldering iron and desoldering tool connected: ±5℃ (At idle temperature) |
Station
| Output Voltage | AC 24 V |
|---|---|
| Vacuum generator | Vacuum pump, double cylinder type |
| Vacuum pressure (max.) | 80kPa (600mmHg) |
| Suction flow | 15 L/min. |
| Dimensions | 158 (W) × 135 (H) × 254 (D) mm |
| Weight | 5.3kg |
Handpiece (FX-9701 soldering iron)
| Power consumption | 95 W (24 V) |
|---|---|
| Tip to ground resistance | ＜2 Ω |
| Tip to ground potential | < 2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 206mm (with T39-D24 tip) |
| Weight | 31g (with T39-D24 tip) |
Handpiece (FR-4103 desoldering tool)
| Power consumption | 140 W (24 V) |
|---|---|
| Nozzle to ground resistance | < 2 Ω |
| Nozzle to ground potential | < 2mV |
| Heating element | Composite heater |
| Standard nozzle | 1.0mm dia. S type (No. N61-05) |
| Cord length | 1.2m |
| Total length | 168mm (with N61-05 nozzle) |
| Weight | 190g (with N61-05 nozzle) |
* The suction flow is measured at the filter case suction port of station.
* Total length and weight are measured without cord and hose.
